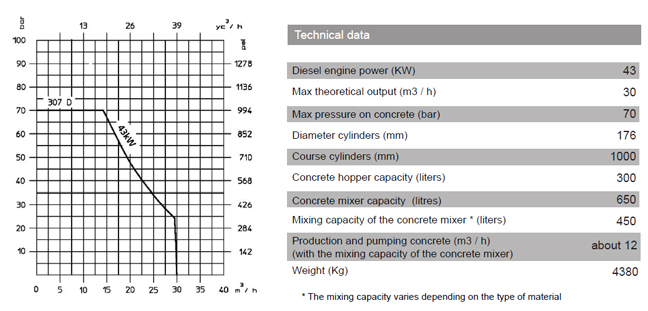

B100XP piston Pump concrete pump - Technical data

Get the work done easier with your

B100 xp Piston Pump


The B100xp Piston Pump is characterized by high resistence and high performance with all types of concrete and is equipped with a pumping unit "CIFA series 6" with variable capacity and constant power.



Concrete pump
Concrete pump Concrete pump

Hydraulic lift

The hydraulic lift of the concrete mixer with manual control, facilitates cleaning and maintenance of the pumping unit.

Concrete pump

Unité de pompage "CIFA série 6"

The B100xp Piston Pump is equipped with a pumping unit "CIFA series 6" with variable capacity and constant power.



Concrete pump

Engine Deutz

Exceptional performance thanks to its powerful Deutz engine.




Concrete pump Concrete pump

Valve "S" with ring wear plate


Concrete pump Concrete pump

Remote control with electrical cable


Concrete pump Concrete pump Concrete pump

Control panel



Central

lubrication system





Electric vibrator on the hopper grid




Concrete pump Concrete pump
